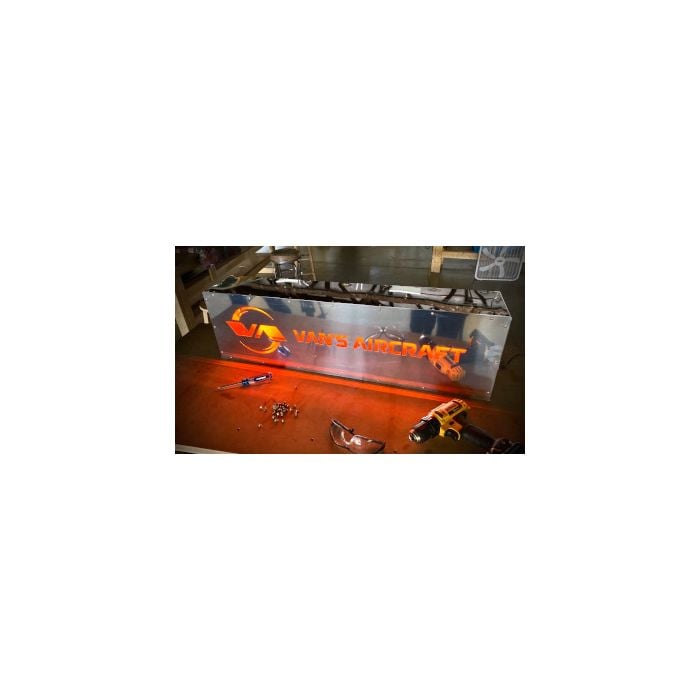

Van's Aircraft Lightbox Sign Kit

$149.00
Part Number
VANS LIGHT BOX KIT
In Stock

Our latest practice kit is also a great, practical sign for your hangar, Man Cave, or "I Love Me" wall.

Includes all the pre-punched/pre-formed parts, hardware and lighting components needed to build the sign using your choice of rivet and fastener types to suit your style. The all-aluminum box has the Van's Aircraft logo cut out of one side, and you'll be able to build with solid rivets in flush or round-heads, or with RV-12 style pulled rivets, and finish it in your own favorite look/feel. Sufficient hardware is included to allow you to choose - Just put the rest in your airplane kit bins as spares! Builds with basic aircraft tools, which are not included.

Dimensions when finished: 35 x 10.5 x 6 inches (width/height/depth)

  • DC Power adapter jack: 5.5x2.1mm male plug
  • Type: US two-prong Input
  • Voltage: AC 100-240V
  • Input Frequency Range: 50/60Hz
  • Output Voltage: DC 12V
  • Output Current: 2A

Assembly Instructions/Plans (PDF)

  • (1) BAG 505 view
    • (0.016) AN426AD3-3 view
    • (0.018) AN470AD3-3 view
    • (20) AN526C632R6 view
    • (1) AN931-4-12 view
    • (20) K1000-06 view
    • (4) MS21071L06 view
    • (72) RIVET LP4-3 view
  • (1) DOC LIGHT BOX KIT view
  • (1) LB-00001 view
  • (1) LB-00002 view
  • (2) LB-00003 view
  • (2) LB-00004 view
  • (2) LB-00005 view
  • (2) LB-00006 view
  • (2) LB-00007 view
  • (2) LB-00008 view
  • (1) LB-LED view
  • (1) LB-POWER SUPPLY view
