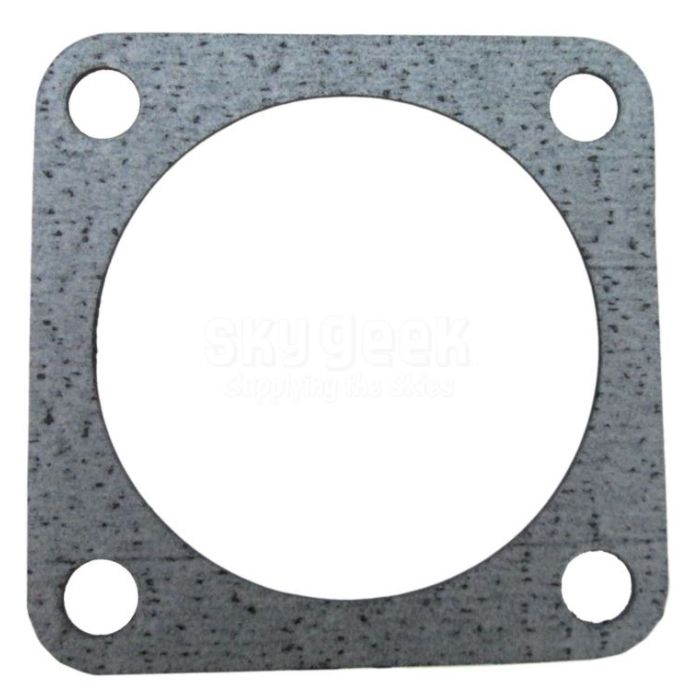

Carburetor Gasket

Lycoming Part No. 66224

Cross-Sectional Shape Style: Solid Single Or Composition
Hole Diameter: 0.340 Inches Nominal
Overall Length: 3.020 Inches Nominal
Overall Width: 3.020 Inches Nominal
Aperture Diameter: 2.410 Inches Nominal
Outside Corner Radius: 0.340 Inches Nominal
Center To Center Distance Between Bolt Holes Along Width: 2.340 Inches Nominal
Center To Center Distance Between Bolt Holes Along Length: 2.340 Inches Nominal
Outside Edge To Bolt Hole Center Distance Along Width: 0.340 Inches Nominal
Outside Edge To Bolt Hole Center Distance Along Length: 0.340 Inches Nominal
Cross-Sectional Thickness: 0.030 Inches Nominal
Bolt Hole Quantity: 4
Material: Rubber Synthetic Overall And Asbestos Overall
Material Document And Classification: AMS 3231 Assn Std Single Material Response Overall
Style Designator: Non-Circular
