U-00025 Brake Caliper O-ring
$5.50
Part Number
U-00025
In Stock
-40 to +400 degrees Fahrenheit, used on standard equipment in the RV-14 kit. Be sure to check your specific application needs for the brakes installed on your aircraft. Refer to Service Letter SL-00047 for additional information about the replacement of prior version O-ring types.

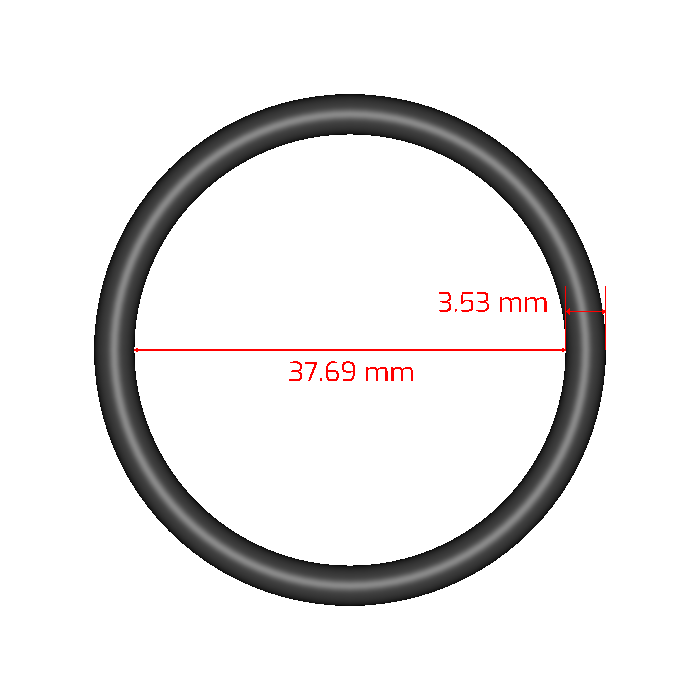

U-00025 is a 75 durometer, black, FKM (Viton®) O-ring. This product is a USA AS568-222 size and has a cross-section of 3.53mm (0.139in) and an inside diameter of 37.69mm (1.484in). It is made from the compound V1038 for improved low-temperature performance.
Size Code: 222
Cross Section: 0.139 in (3.53 mm)
Inside Diameter: 1.484 in (37.69 mm)
Outside Diameter: 1.762 in (44.75 mm)
Part Number:V1038-222
Compound:V1038
Material Type: FKM (Viton®)
Sub Type: GLT Low Temp. Type
High Temp: 400 °F (205 °C)
Low Temp: -40 °F (-40 °C)
Hardness: 75 Shore A
Color: Black
Cross Section: 0.139 in (3.53 mm)
Inside Diameter: 1.484 in (37.69 mm)
Outside Diameter: 1.762 in (44.75 mm)
Part Number:V1038-222
Compound:V1038
Material Type: FKM (Viton®)
Sub Type: GLT Low Temp. Type
High Temp: 400 °F (205 °C)
Low Temp: -40 °F (-40 °C)
Hardness: 75 Shore A
Color: Black
Used in these kits
RV-14, RV-14A
Inner Diameter (decimal)
1.234
Material
V1038
Outer Diameter (decimal)
1.512
Type
O-ring
