U-00015-1 Brake Caliper O-ring

$5.50
Part Number
U-00015-1
On Backorder

Viton O-ring, fits Cleveland 5x5 brake systems included as standard equipment in these kits: RV-3, RV-4, RV-6, RV-6A, RV-7, RV-7A, RV-8, RV-8A, RV-9, RV-9A, RV-12, RV-12iS. Be sure to check your specific application needs for the brakes installed on your aircraft. Refer to Service Letter SL-00047 for additional information about the replacement of prior version O-ring types.

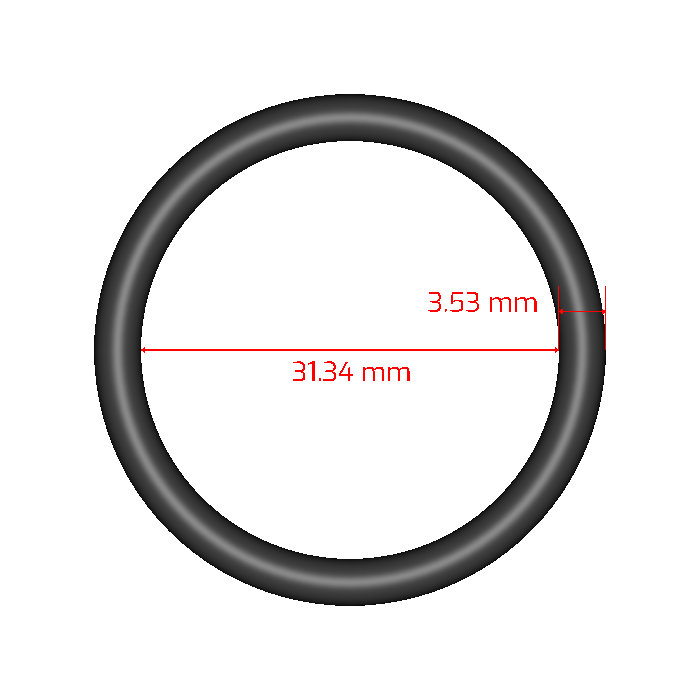

U-00015-1 is a 75-durometer, black, FKM (Viton®) o-ring. This product is a USA AS568-218 size and has a cross-section of 3.53mm (0.139in) and an inside diameter of 31.34mm (1.234in). It is made from the compound V1038 for improved low-temperature performance.

Size Code: 218
Cross Section: 0.139 in (3.53 mm)
Inside Diameter: 1.234 in (31.34 mm)
Outside Diameter: 1.512 in (38.40 mm)
Compound: V1038
Material Type: FKM (Viton®)
Sub Type: GLT Low Temp. Type
High Temp: 400 °F (205 °C)
Low Temp-40 °F (-40 °C)
Hardness:75 Shore A
Color:Black

U-00015-1 is a direct replacement for U-00015

Used in these kits
RV-3, RV-4, RV-6, RV-6A, RV-7, RV-7A, RV-8, RV-8A, RV-9, RV-9A, RV-12, RV-12iS
Type
O-ring
Material
V1038
Outer Diameter (decimal)
1.512
Inner Diameter (decimal)
1.234
