RV-12 Landing, Position, and Strobe Lights

$1,750.00
Part Number
RV-12 LIGHT KIT-SV
On Backorder

Comprehensive Skyview/Garmin Package

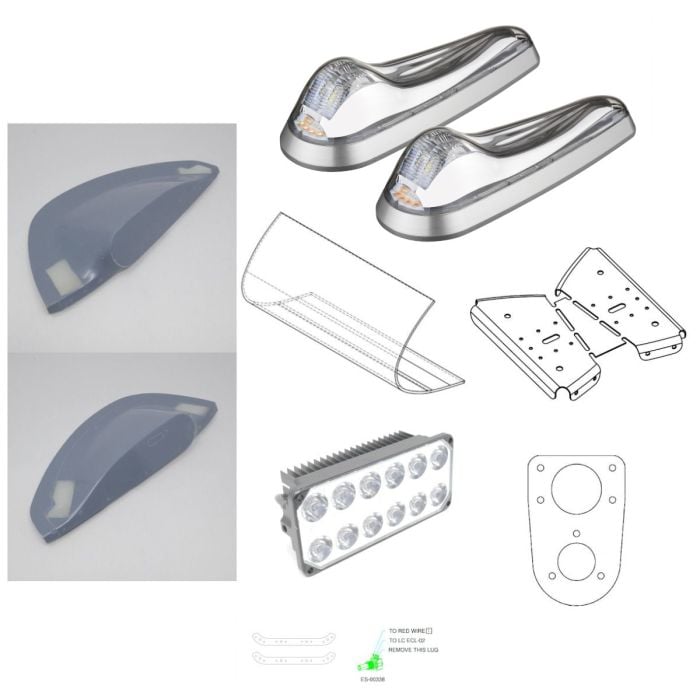

This lighting kit includes everything necessary to equip your RV-12 for night flight. Wingtip LED position and strobe lights, LED landing light, and cockpit map light are all included, along with all hardware, wiring and mounting brackets. All LED illumination provides maximum light and reliability with minimum current draw and weight. Easy retrofit to flying RV-12 or may be installed during kit construction.


Entire lighting system adds 2.3lbs to airplane empty weight.


Older RV-12s with the D-180 EFIS may also want to upgrade their wing wiring connectors as part of the installation. If so, order the wing connector kit in addition.

Kit Contains:

1 BAG 2740
1 BAG 2825
1 BAG 2826-2
1 BAG 958
1 DOC 12 LIGHTING
1 ES-00103
1 F-12124
1 LC ECL-02
1 LL-200
1 LN-200-1
1 PT-035X1/4X4'
1 W-00036
1 W-1222-L
1 W-1222-R
1 W-1223B
2 W-1223E
2 WIRE #18X55'
1 WIRE #22X28'

Used in these kits
RV-12, RV-12iS
  • (1) BAG 2825 view
    • (5) RIVET AACQ-4-4 view
    • (15) RIVET CS4-4 view
    • (40) RIVET LP4-3 view
  • (1) BAG 2826-2 view
    • (2) AN3-3A view
    • (6) AN365-632A view
    • (4) AN365-832A view
    • (2) AN507-6R6 view
    • (4) AN507-6R8 view
    • (8) AN507C632R8 view
    • (4) AN515-8R8 view
    • (1) BUSHING SB187-2 view
    • (1) BUSHING SB375-3 view
    • (4) BUSHING SB375-4 view
    • (4) ES 31890 view
    • (10) ES-00079 view
    • (2) ES-00141 view
    • (8) K1000-06 view
    • (5) NAS1149FN832P view
    • (3) PLASTIC TIE WRAP 14" view
    • (10) PLASTIC TIE WRAP 4" view
    • (1) ES HST-3/16X2 view
    • (2) W-1223C view
  • (1) DOC 12 LIGHTING view
  • (1) ES-00103 view
  • (1) F-12124 view
  • (1) LC ECL-02 view
  • (1) LL-200 view
  • (1) PT-035X1/4X4' view
  • (1) W-1222-L view
  • (1) W-1222-R view
  • (1) W-1223B view
  • (2) W-1223E view
  • (2) WIRE #18X55' view
  • (1) WIRE #22X28' view
  • (1) BAG 2740 view
    • (0.01) AN426AD3-3.5 view
  • (1) BAG 958 view
    • (0.01) AN426AD3-4 view
  • (1) LN-200-1 view
  • (1) W-00036 view
