Fuel Pump

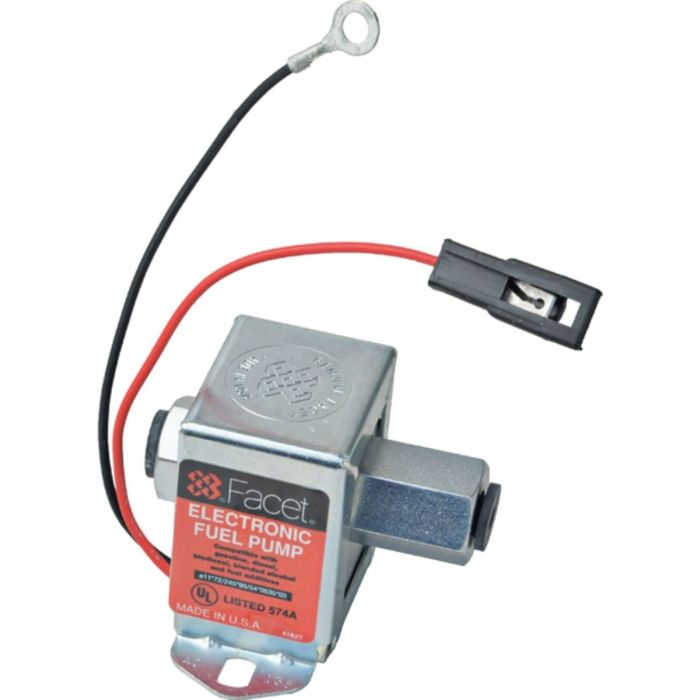

For low fuel requirements on engines up to about 150 horsepower, a single Solid State pump such as this one is usually sufficient. Facet fuel pumps have low power requirements (about 1 amp at 12 volts) and operate without troublesome seals or diaphragms. Facet pumps are compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.

Maximum fuel delivery 32 gallons per hour at free-flow. Maximum pressure 4.5 to 6 psi. Typical flow 15 gph at 3 psi. 1/8 NPT female ports. This pump does not have an anti-siphon valve or a one-way valve, so fuel can be pulled through the pump in either direction when the pump is off.

Application Specifics:

This is used in the RV-12iS ONLY WITH the ULS engine, or the legacy RV-12 ULS.

It can also be used in the RV-3,4,6,7,8,9 (with carbureted engines) to replace the obsolete ES 40108 but you must use additional AN6 to NPT fittings.

1x AN816-6-2D (2x for the RV-8)

1x AN823-6-2D (RV-6,7,9) we don’t currently stock
