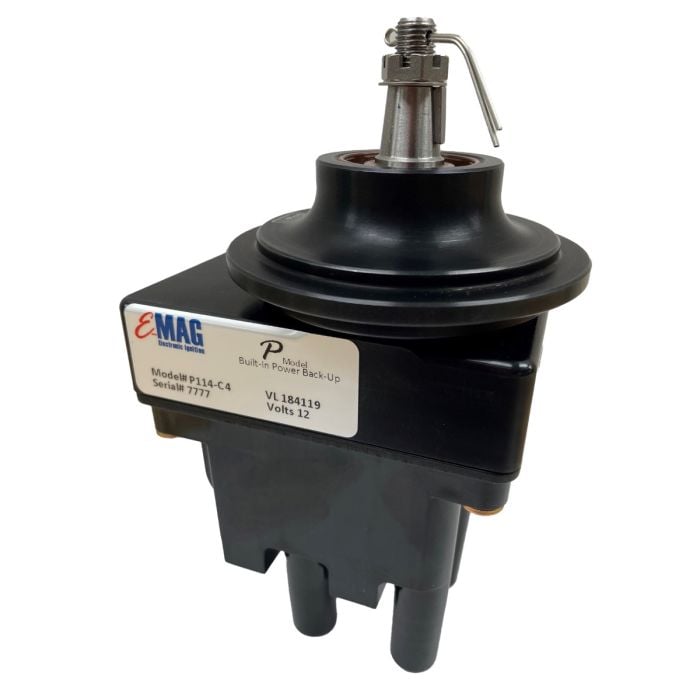

PowerUP E-MAG Electronic Ignition For Lycoming IO-390 [Single Set]
This 4-cylinder E-MAG kit includes everything you need to add reliable electronic ignition to your RV. Self powering, the E-MAG ignitions use ship's power only to start and then run on an internal power source, making them as independent as any common magneto.
This part number is for a single PowerUP E-MAG intended to replace the impulse-coupled magneto, and includes all hardware needed to make ths swap.
Please note that this 4-cylinder kit is for the Lycoming IO-390 engine, which requires long-reach plugs. Do not order this part for the Lycoming O/IO-320 and O/IO-360 engines.
New systems begin shipping by the end of April.
Among the advantages of the E-MAG system over magnetos:
-
Much more powerful spark even at low engine speeds
-
Ability to use inexpensive automotive-style spark plugs
-
Variable ignition timing ensures faster starts and greater efficiency at altitude
-
Ignition timing is varied by engine speed and throttle position/manifold pressure
-
Reduced operating costs
-
No recurring magneto maintenance
-
No need for external backup batteries or external boxes required
The 4-cylinder kit includes:
(1) 4-Cylinder 114 Series self-powering EMAG unit
(1) New 4-Cylinder engine harness
(4) New spark plugs, adapters & gaskets (long reach)
(1) New drive gear
(2) New engine studs
(1) Incidental kit that includes 1/4-inch MAP tube, ignition gasket, plastic hose clamp, diode, terminal jumper and pulse damper
