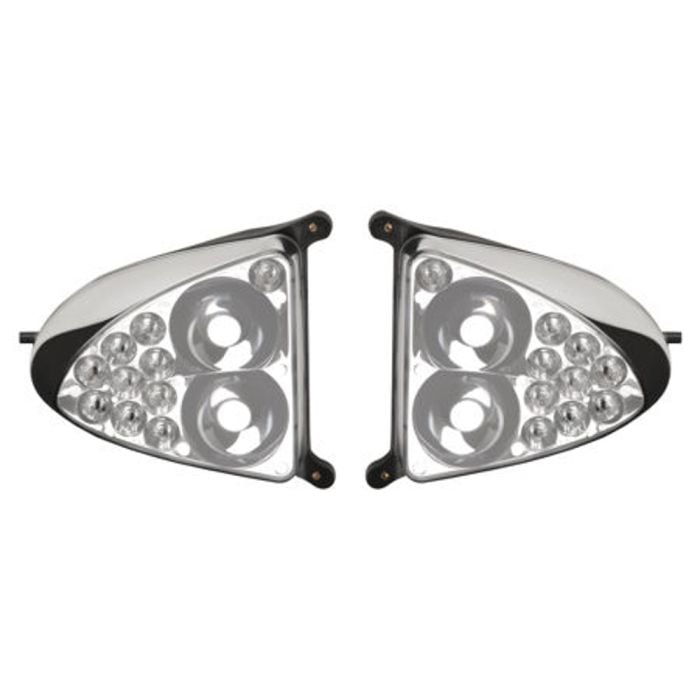

LL-205

Taxi, Pulse and Wig Wag modes are built into the lights for simple wiring. Best done prior to paint as installation will require touch-up on painted tips. 50,000hr life and low current draw (Max 5A per light).

RV-7/8 builders with the later W-715-1 wingtips (larger recess) use only LL-205. This includes wingtip landing/taxi/recognition lights for L&R, installation hardware and installation template. The lights will fit into unmodified W-715-1 tips with the standard lens.

RV-9/9A builders need the LL-205 KIT-9 to modify the wingtip. A new lens cover IS INCLUDED in this kit.

RV-10/14/14A builders need the LL-205 KIT-10/14 to modify the wingtip. A new lens ( RV-10/14/14A Wing Tip Light Lens ) will be needed if one was fitted to the original tip recess.

RV-3/4/6/6A with the W-415-L/R (flat top) or the early (Pre-2005 "batwing") W-715-L/R wingtip cannot use these lights without substantial fiberglass work and possibly a custom-made lens. RV-4/6/7/8 builders with the old type wingtips can buy the W-715-1-L/R tips to install these lights if desired. Order LN WNGTIPS W/LENS-7/8 for the wingtip pair with lens.
