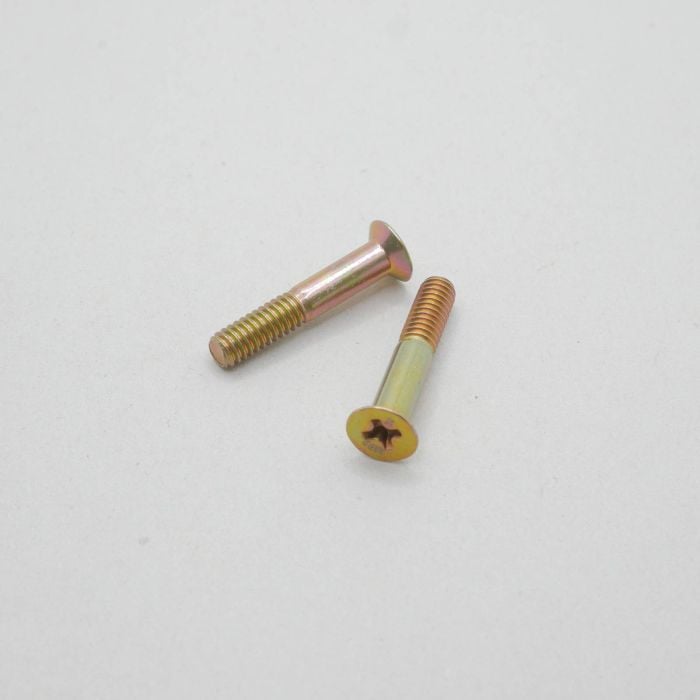

AN509-8R14 Screw

$0.26

Part Number

AN509-8R14

In Stock

More Information
Aircraft	RV-10, RV-12, RV-12iS, RV-6, RV-6A, RV-7, RV-7A, RV-8, RV-8A, RV-9, RV-9A

Used in these kits

RV-10, RV-12, RV-12iS, RV-6, RV-6A, RV-7, RV-7A, RV-8, RV-8A, RV-9, RV-9A

Cross Reference Part Numbers

MS24694S11

Finish

CAD Per QQ-P-416 Type II, CLASS 3

Grip

15/32

Grip (decimal)

0.4688

Head Type

Flat

Length

29/32

Length (decimal)

0.9063

Material

Alloy Steel Per MIL-S-6049 (8740)

Screw Thread Size

Thread Diameter

5/32

Thread Diameter (decimal)

0.1563

Thread Pitch

Type

Countersunk Structural
