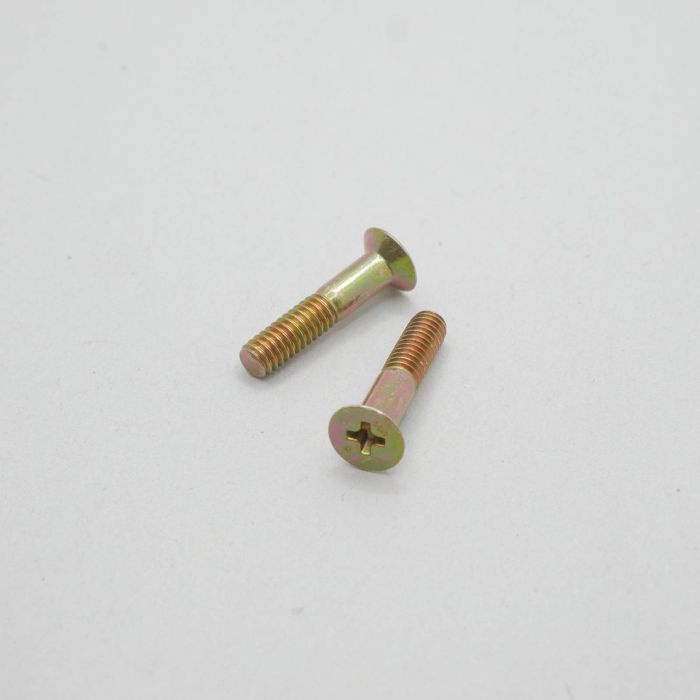

AN509-8R12 - Flat Head Screw

$0.15
Part Number
AN509-8R12
In Stock
Used in these kits
RV-10, RV-14, RV-14A, RV-8, RV-8A
Type
Countersunk Structural
Head Type
Flat
Material
Alloy Steel Per MIL-S-6049 (8740)
Length
25/32
Length (decimal)
0.7813
Thread Diameter
5/32
Thread Diameter (decimal)
0.1563
Screw Thread Size
8
Thread Pitch
32
Finish
CAD Per QQ-P-416 Type II, CLASS 3
Grip
11/32
Grip (decimal)
0.3438
Cross Reference Part Numbers
MS24694S9
