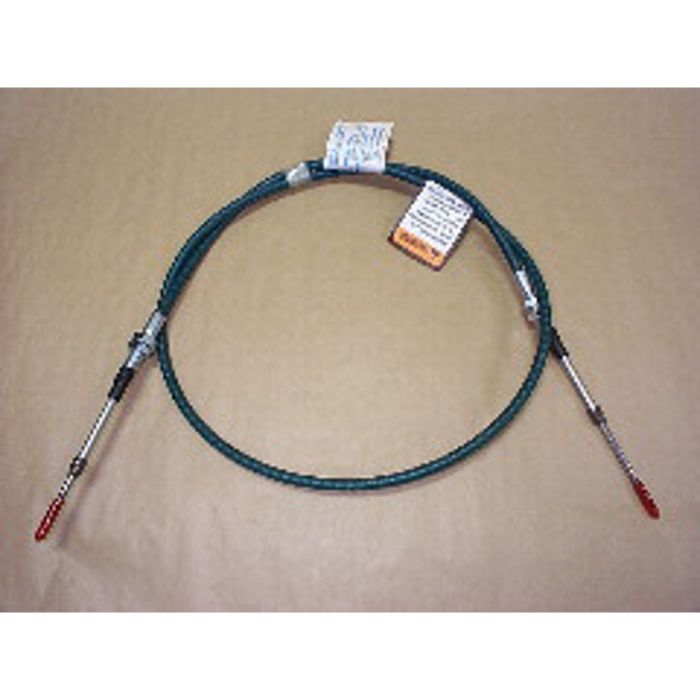

Quadrant Cable 70.5"

These cables are designed for use with quadrants, and for other push-pull applications. 10-32 (AN3) thread on each end. Primarily used for engine controls on tandem and single place aircraft, but have possible multiple uses on other RVs. Cable travel is 2 1/8". Length is measured tip to tip. Custom lengths also available, usually a 2 week lead time.

All cables are "bulkhead mounted". This means the outer sheathing is captured on each end with nuts. A swivel of about 15 degrees allows the ends to flex without wearing the cable

The length of the cable is measured from tip-to-tip.
