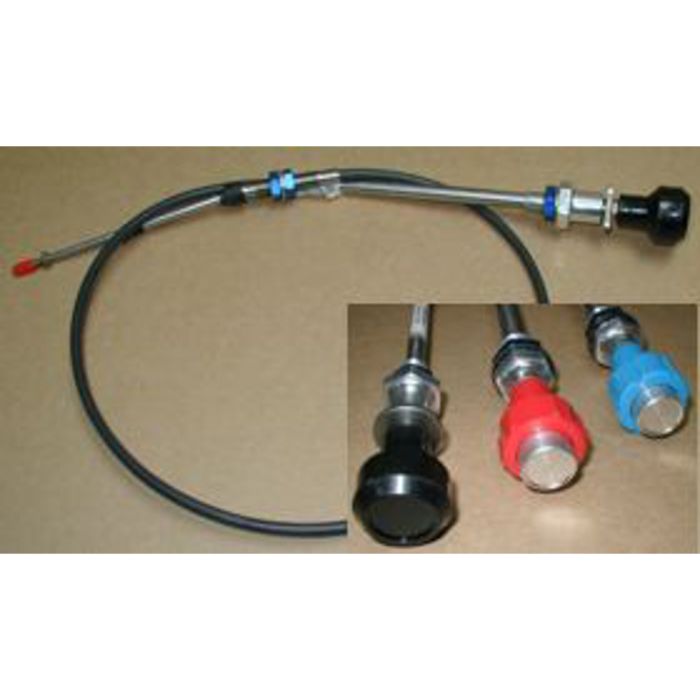

CT BLUE VPROP 48
Cables with Knobs on Cockpit End
Designed for a perfect fit on the RV-7/7A/9/9A to control the propeller governor, but have possible multiple uses on other RVs.
Cables are equipped with a vernier knob on one end intended to be mounted on a panel with a 10-32 thread on the engine end. Primarily used on side-by-side (SxS) aircraft.
Several different lengths are available so try to measure your application before ordering. Routing will make a difference. The length of the cable is measured from the mounting surface of the vernier style cable to the tip of the cable when the control is in the forward position. All cables are "bulkhead mounted". This means the outer sheathing is captured on each end with nuts. A swivel of about 15 degrees allows the ends to flex without wearing the cable.
