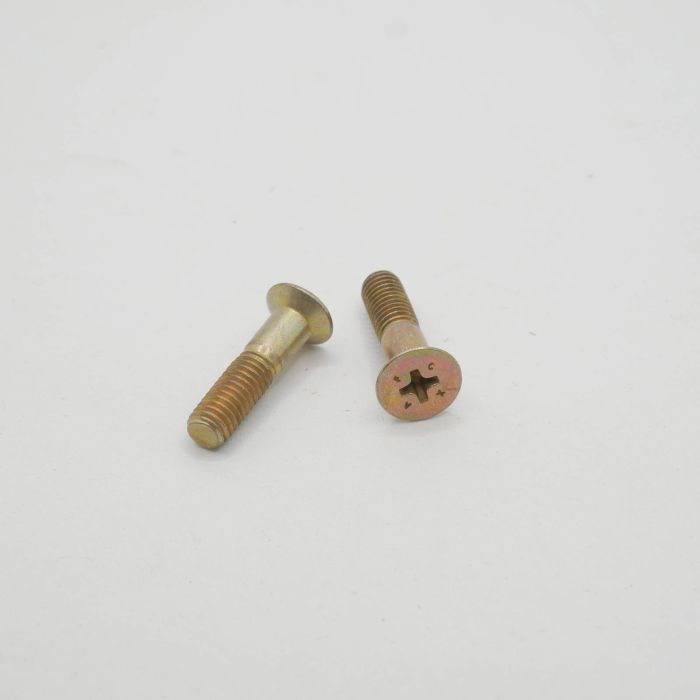

AN509-10R12 Screw
$0.21
Part Number
AN509-10R12
In Stock
| Aircraft | RV-6, RV-6A, RV-7, RV-7A, RV-9, RV-9A |
|---|
Used in these kits
RV-6, RV-6A, RV-7, RV-7A, RV-9, RV-9A
Cross Reference Part Numbers
MS24694S54
Finish
CAD Per QQ-P-416 Type II, CLASS 3
Grip
5/16
Grip (decimal)
0.3125
Head Type
Flat
Length
25/32
Length (decimal)
0.7813
Material
Alloy Steel Per MIL-S-6049 (8740)
Screw Thread Size
10
Thread Diameter
3/16
Thread Diameter (decimal)
0.1875
Thread Pitch
32
Type
Countersunk Structural
