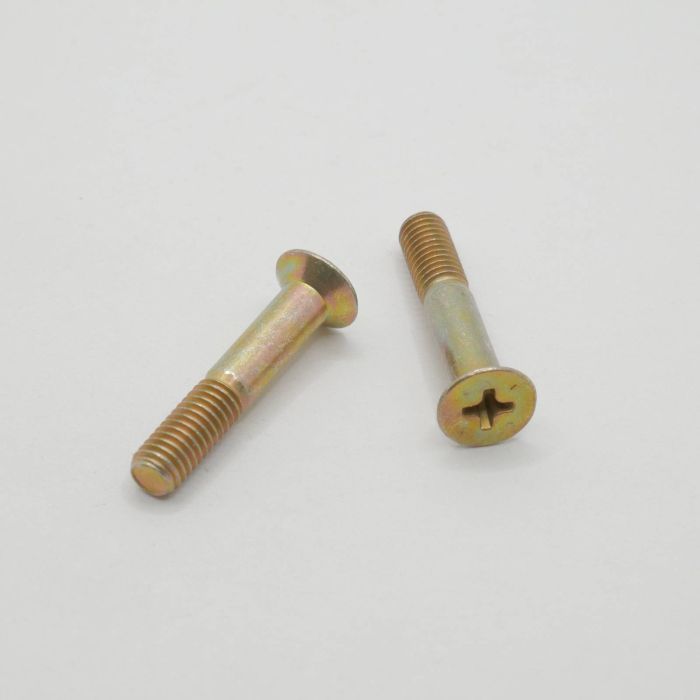

AN509-10R16 Screw

$0.40
Part Number
AN509-10R16
In Stock

Used in these kits
RV-10, RV-12, RV-14, RV-14A, RV-6, RV-6A, RV-7, RV-7A, RV-8, RV-8A, RV-9, RV-9A
Cross Reference Part Numbers
MS24694S58
Finish
CAD Per QQ-P-416 Type II, CLASS 3
Grip
9/16
Grip (decimal)
0.5625
Head Type
Flat
Length
1 1/32
Length (decimal)
1.0313
Material
Alloy Steel Per MIL-S-6049 (8740)
Screw Thread Size
10
Thread Diameter
3/16
Thread Diameter (decimal)
0.1875
Thread Pitch
32
Type
Countersunk Structural
